A-A-58028D
color, 1-inch stripe (1-3-1). The reflective stripes shall be white for vehicles painted Candy
Apple Red and Desert Sand.
2.1.9.4 Chevron Striping. In accordance with 15.9.3.2 of NFPA 1901 at least 50 percent of the
rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump panel
areas not covered by a door, shall be equipped with retroreflective striping in a chevron pattern
sloping downward and away from the centerline of the vehicle at an angle of 45 degrees. 3M part
number 983-17 (red) and 983 -23 (florescent yellow/green) reflective diamond grade or
equivalent shall be utilized. stripe in the chevron shall be a single color alternating between red
and fluorescent yellow in accordance with 15.9.3.2.1. Each stripe shall be 6-inches (150 mm) in

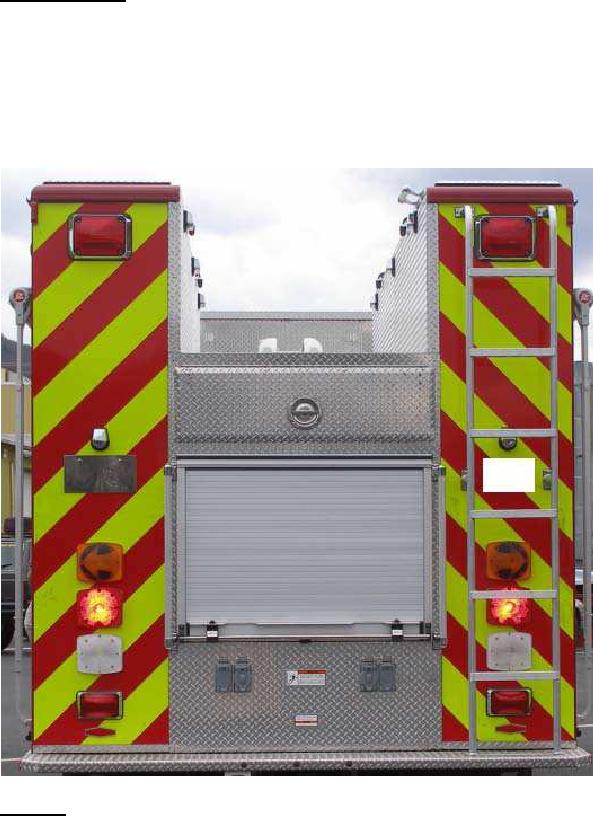

width in accordance with 15.9.3.2.2 of NFPA 1901 and the example provided below.
2.1.9.5 Lettering. Vehicles painted Candy Apple Red shall have the letters ''UNITED STATES''
and ''AIR FORCE'' applied in synthetic or encapsulated gold leaf, with outline and black shadow,
on the front door on both sides in long radius elliptical arches above and below the lettering
center line. The size of the lettering shall be a minimum of 2½-inches to a maximum of 6-inches.
