A-A-58005 Truck, Fire Fighting \(Telescoping Aerial Ladder And Work Platform\)This commercial item description \(CID\) covers an aerial ladder fire truck. It has a 6x4 chassis with a diesel engine and an automatic transmission; a cab for at least five seated persons with at least four doors; a 1,250 gallon per minute \(gpm\) fire pump; a water tank with a capacity of at least 150 gallons; hose storage areas; an aerial ladder with a permanently mounted waterway and work platform; ground ladders; and equipment compartments. The aerial ladder truck is intended to combat structural and associated fires, and to support fire fighting and rescue operations by positioning personnel, handling materials, providing continuous egress, or discharging water at positions elevated from the ground.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22


A-A-58005C
2.1.9.5 Aerial Ladder Lettering. Vehicles painted Candy Apple Red shall also have synthetic or
encapsulated gold leaf letters "U.S. AIR FORCE" with outline and black shadow located on both
side panels of the retracted ladder. Base names are not authorized. Vehicles painted Desert Sand
shall have no lettering.

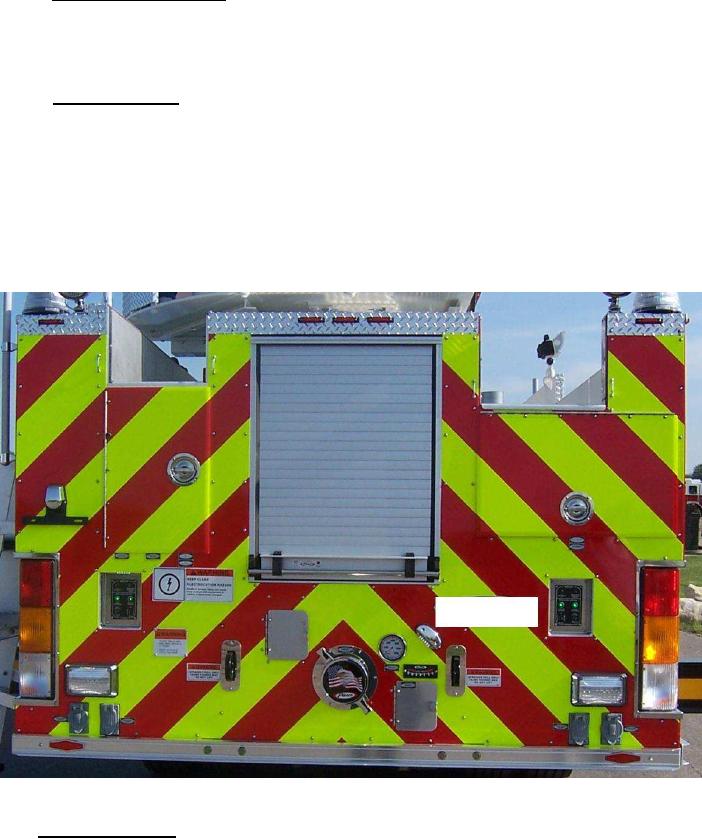

2.1.9.4 Chevron Striping. In accordance with 15.9.3.2 of NFPA 1901 at least 50 percent of the
rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump panel
areas no-t covered by a door, shall be equipped with retroreflective striping in a chevron pattern
sloping downward and away from the centerline of the vehicle at an angle of 45 degrees. 3M part
number 983-17 (red) and 983 -23 (florescent yellow/green) reflective diamond grade or
equivalent shall be utilized. Each stripe in the chevron shall be a single color alternating between
red and fluorescent yellow in accordance with 15.9.3.2.1. Each stripe shall be 6-inches (150 mm)
in width in accordance with 15.9.3.2.2 of NFPA 1901 and the example provided below.
2.1.9 Identification plate. A permanently marked identification plate shall be securely mounted at
the driver's compartment. The identification plate shall contain the following information:
a.
NOMENCLATURE
b.
MANUFACTURER'S MAKE AND MODEL
c.
MANUFACTURER'S SERIAL NUMBER
d.
USAF VEHICLE REGISTRATION NUMBER
6
