A-A-58003F
one inch body color, and one inch reflective). The reflective stripes shall be white for vehicles
painted Candy Apple Red and Desert Sand.
2.1.9.4 Chevron Striping. In accordance with 15.9.3.2 of NFPA 1901 at least 50 percent of the
rear-facing vertical surfaces, visible from the rear of the apparatus, excluding any pump panel
areas no-t covered by a door, shall be equipped with retroreflective striping in a chevron pattern
sloping downward and away from the centerline of the vehicle at an angle of 45 degrees. 3M part
number 983-17 (red) and 983 -23 (florescent yellow/green) reflective diamond grade or
equivalent shall be utilized. Each stripe in the chevron shall be a single color alternating between
red and fluorescent yellow in accordance with 15.9.3.2.1. Each stripe shall be 6-inches (150 mm)

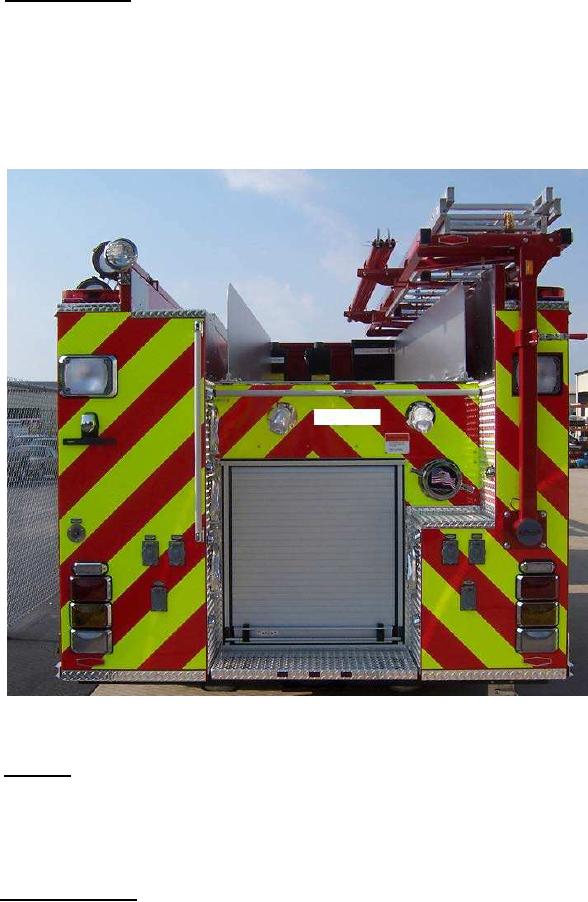

in width in accordance with 15.9.3.2.2 of NFPA 1901 and the example provided below.
2.1.9.5 Lettering. Vehicles painted Candy Apple Red shall have the letters ''UNITED STATES''
and ''AIR FORCE'' applied in synthetic or encapsulated gold leaf, with outline and black shadow,
on the front door on both sides in long radius elliptical arches above and below the lettering
center line. The size of the lettering shall be a minimum of 2½-inches to a maximum of 6-
inches. Vehicles painted Desert Sand shall have no lettering.
2.1.10 Identification plate. A permanently marked identification plate shall be securely mounted
at the driver's compartment. The identification plate shall contain the following information:
